Haacon Rear support | zdjęcie nr 1

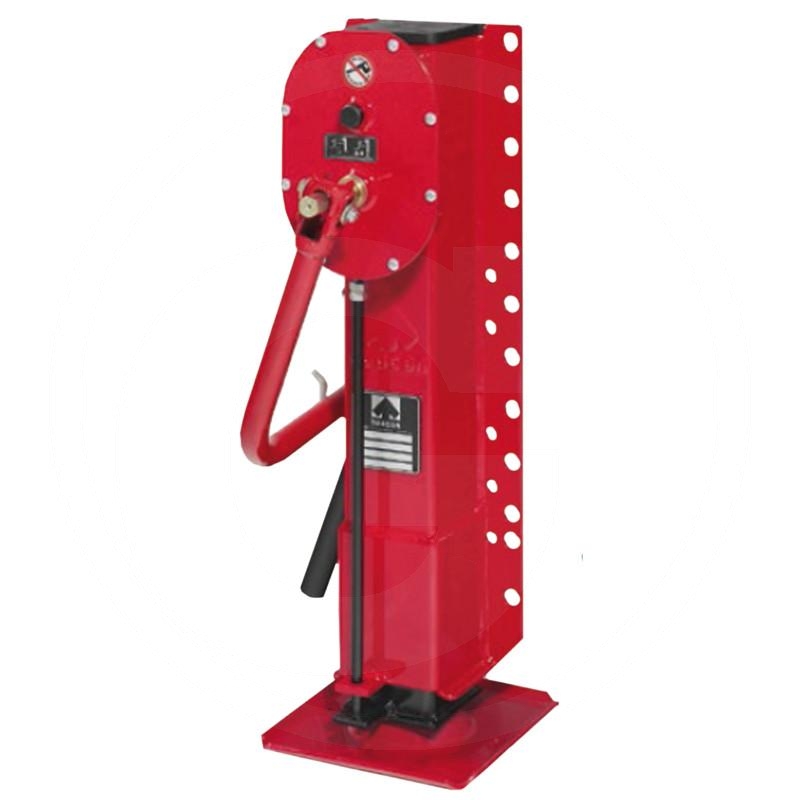

Haacon Rear support

Product code: 220211631

Price: 1546.651 546,65 € Inc. VAT

Availability: in a warehouse

Haacon Rear support | zdjęcie nr 2

Description

Price unit: piece
Pack of: 1

Availability

perm. load / set static (pressure in t): static: 25
Installation height (mm): 750
Stroke (mm): 410
Kurbeldruck (N): max. 170
Übersetzung: Lastgang 1 Schneegang 2 (mm): 1 = 1
2 = 20
Weight (kg): 45
Weight: 39.45 kg

GRANIT trailer, trailer, vehicle parts & accessories

Page 696

Other products from category Spindle support specially designed for the rear support of silo vehicles. It offers the possibility of rapid safety check (max .: 10 min.) in the context of the vehicle inspection through their removable support tube. - With waterproofing package against water jets- Stem and inner tube reinforced - shaft, suuport, cover, ball foot in KTL primer finish, surface powder coated - Spindle protected with grease tube - excellent power to weight ratio - easily switchable, robust gearbox for comfortable operation - long, continuous welded mounting plate, enormously kink resistant

Haacon Rear support
1 546,65 ^{€ Inc. VAT}
