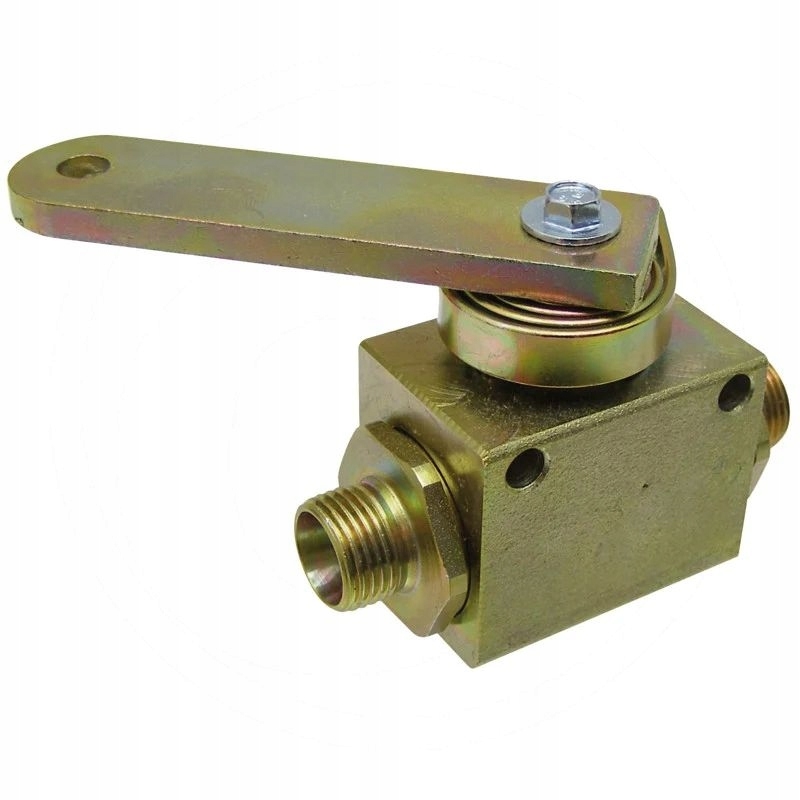

Stroke limiter HBV-12L (M18x1.5)
Product code: 85099055Product reference: HBV-12L
Price:
66,59 € Inc. VAT
Availability:
in a warehouse
Description
In the output setting, the stroke limiter is open. A cable secured to the piston rod and handle operates the switch when under tension. This switches the stroke limiter to the floating position, interrupting the flow of oil. The piston rod is held in this position.
Attributes
| Connection BSP: | 12L (M18x1,5) |
| P max (bar): | 350 |
| Q max (l/min): | 60 |
| Nominal width: | DN 10 |
| Technical data: Connection: | 12 L |
| working pressure | 350 bar |
