Battery energiser
Product code: 580580107
Price:
1 022,60 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
piece
Pack of: 1
Pack of: 1
Availability
- Nominal voltage (V): 9 / 12
- Charging energy (J): 0,25* - 0,4** / 0,85* - 1,3**
- Max. fence voltage (1st fence outlet) (V): 7200* - 9100** / 7800* - 9800**
- Voltage at 500 ohms (1st fence outlet) (V): 1800* - 2200** / 2300* - 2900**
- Power consumption (W or mA): 14 - 28 mA*, 19 - 48 mA** / 28 - mA 35* - 110 mA**
- Max. fence length according to CEE (km): 8* - 15** / 25* - 30**
- Max. fence length without vegetation growth (km): 5* - 8** / 15* - 20**
- Max. fence length with high level of vegetation growth (km): 2* - 4** / 6* - 8**
-
Version:

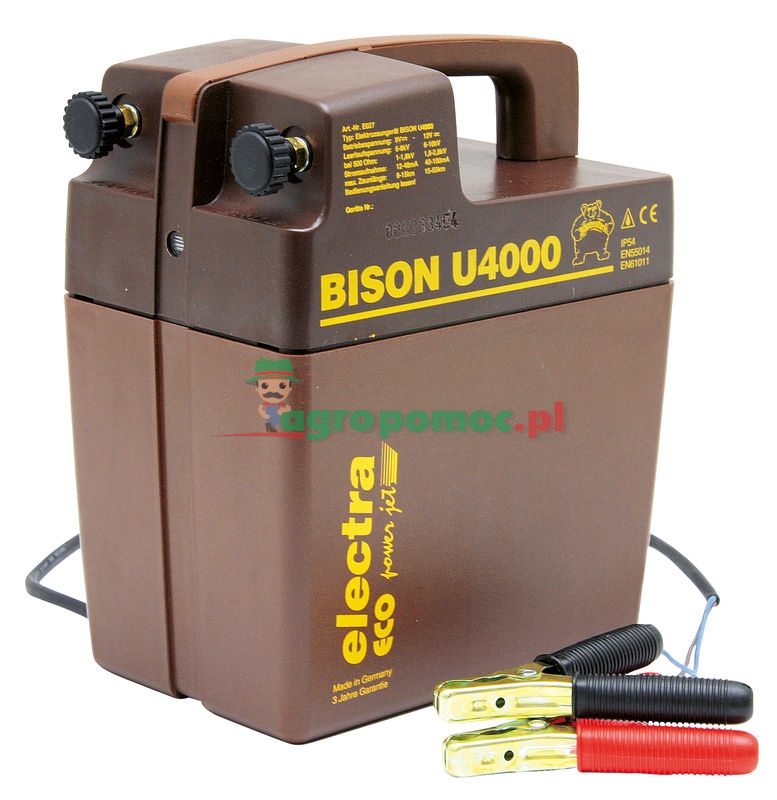

Battery device Bison GU 4000
The power switching is done between 9 and 12V thanks to an automatically microprocessor position . In addition, another power adjustment by a pressure switch is possible. By Quick Shock technology, in which the entire fence is charging, takes place between two beats, an immediate power supply to the fence touching an animal. The battery box or control begins to flash when the battery should be recharged or the dry battery will be exhausted.
• 2 selectable power levels • Powerful and highly flexible • at 12V operating voltage higher performance than 9V • With Quick Shock technology • Growth destructive and versatile • with fence, battery and battery check • particularly good ground by 2 grounding posts included • operated with power adapter unit 12V / 300mA •
number of Euro-networks that can be connected to the unit: 1 (strong), 2 (amplified) / 3 (strong), 6 (reinforced) - Animal contact voltage (V): 4600 (strong), 5700 (reinforced) / 5100 (strong), 6400 (reinforced)
- Discharge energy (J): 0,25 (strong), 0,4 (reinforced) / 0,85 (strong), 1,3 (reinforced)
- Max. fence length (m): 8000 (strong), 15000 (reinforced) / 25000 (strong), 30000 (reinforced)
- Output voltage (V): with open circuit 7200 (strong), 9100 (reinforced) / 7800 (strong), 9800 (reinforced)
- Recommended fence length (m): depending on growth 2000 - 5000 (strong), 4000 - 8000 (reinforced / 6000 - 15000 (strong), 8000 - 20000 (reinforced)
- Voltage at 500 Ohm (V): 1800 (strong), 2200 (reinforced) / 2300 (strong), 2900 (reinforced)
- Weight: 3.84 kg
