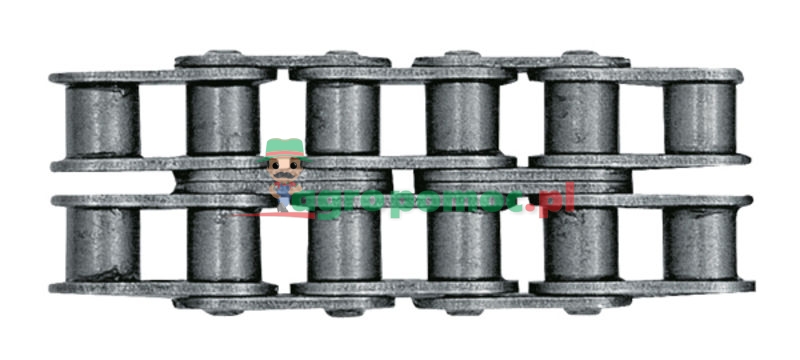

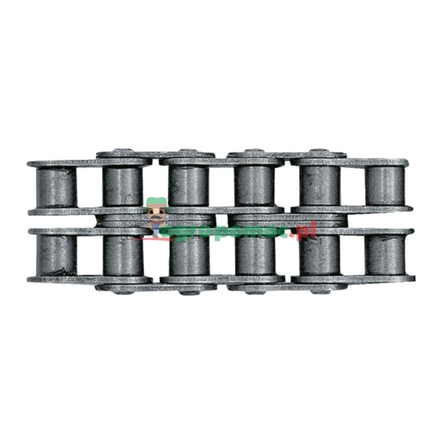

Chain
Product code: 64716777
Price:
1 220,79 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

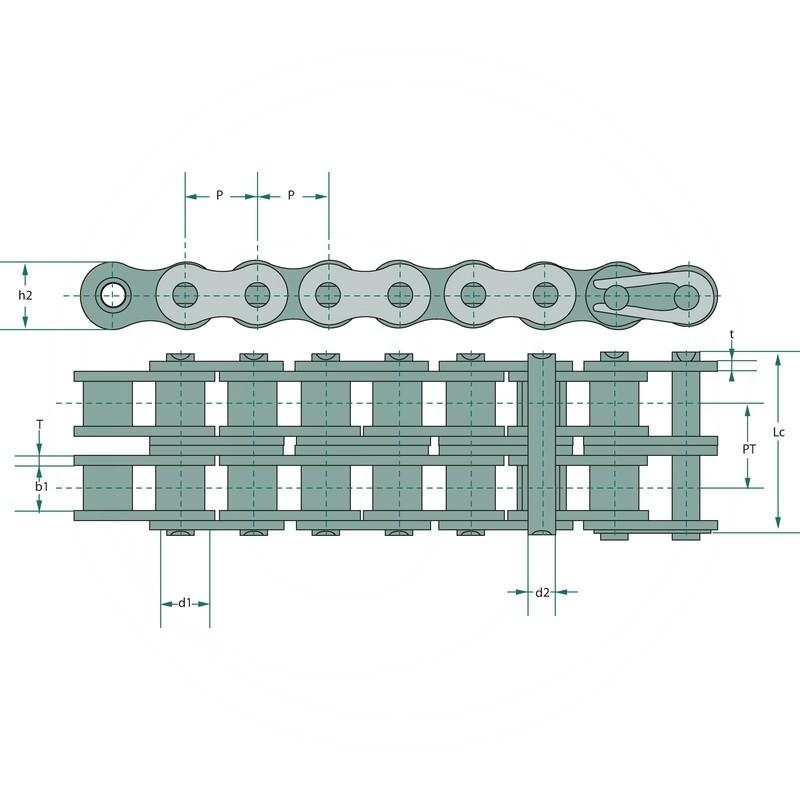

- Type: DH 16BSP-2
- Pitch p: 25,40
- Roller Ø d1 (mm): 15,88
- Clearance width b1 (mm): 17,02
- Bolt Ø d2 max. (mm): 8,28
- Length of pin (mm): L / Lc: 68 / 69,3
- h2 (mm): 21,00
- T (mm): 4,15
- t (mm): 3,10
- Min. breaking load (kN): 143,1
