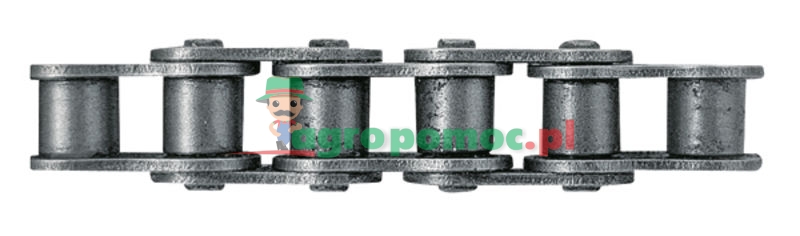

Chain
Product code: 64716778
Price:
1 330,59 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

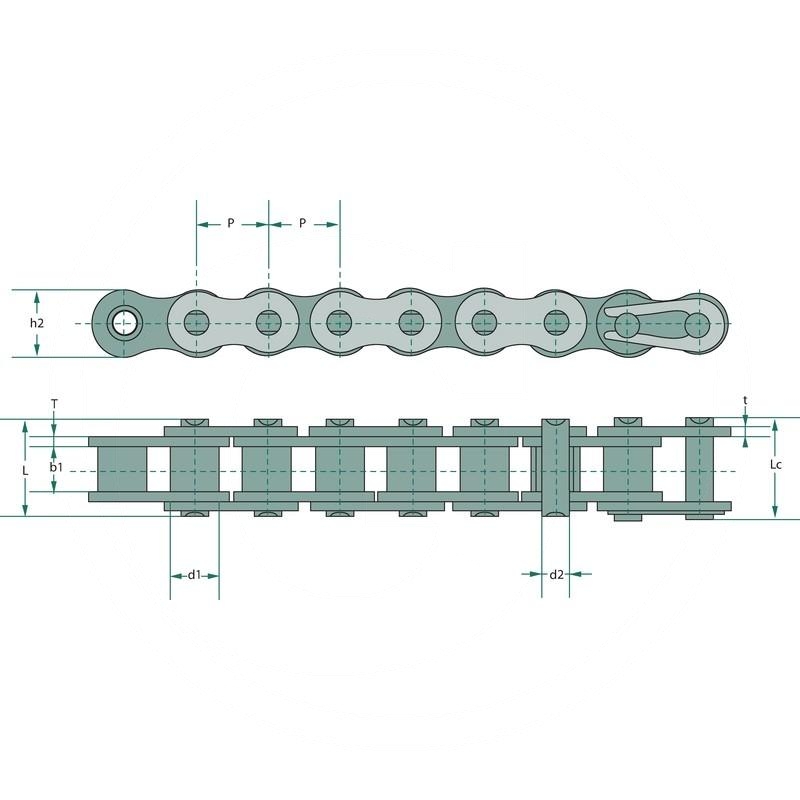

- Type: DH 20BSP-1
- Pitch p: 31,75
- Roller Ø d1 (mm): 19,05
- Clearance width b1 (mm): 19,56
- Bolt Ø d2 max. (mm): 10,19
- Length of pin (mm): L / Lc: 41,3 / 45
- h2 (mm): 26,40
- T (mm): 4,50
- t (mm): 3,50
- Min. breaking load (kN): 123,5
- Weight: 24.55 kg
