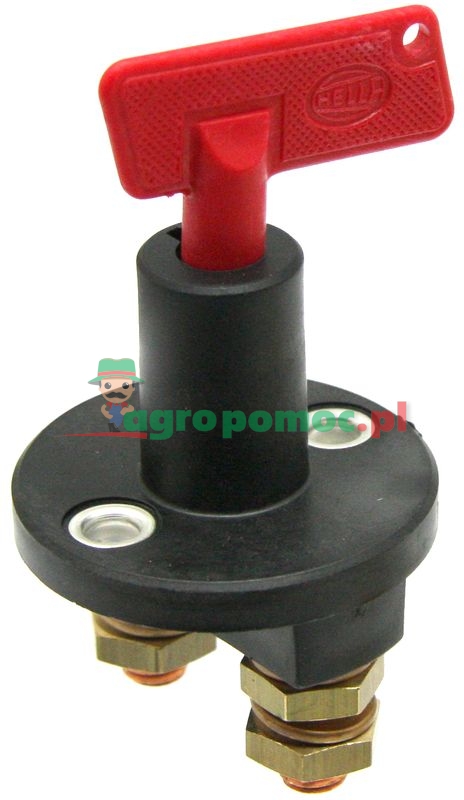

Hella Disconnector

Product code: 4556EK 002843001

Price: 56.956,90 € Inc. VAT

Availability: in a warehouse

Description

Price unit: piece
Pack of: 1

Availability

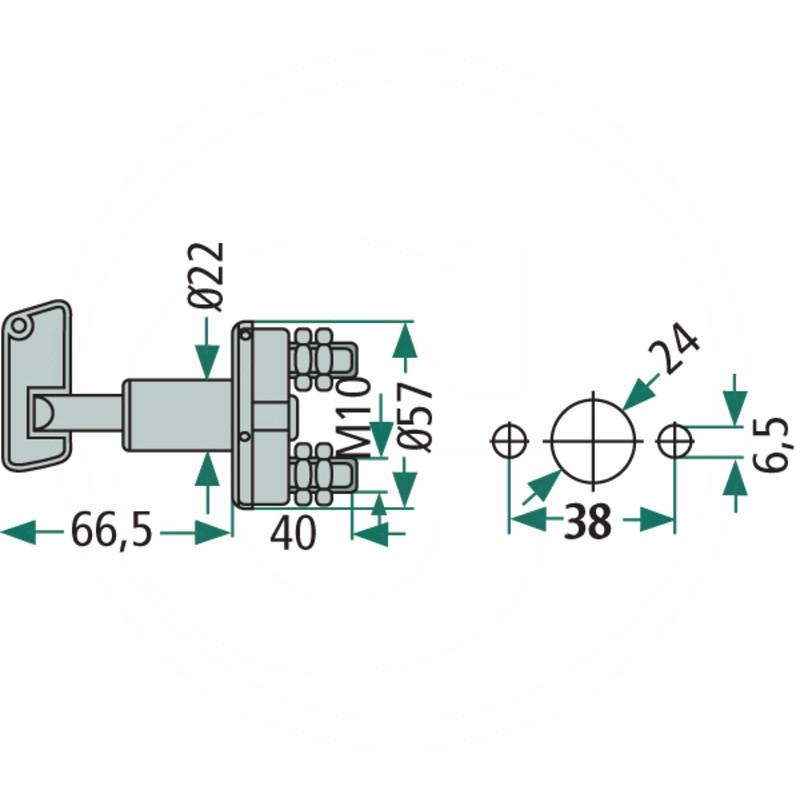

Fig. no.: 1

Version: For battery and ignition current, ignition key red, optional circuit for + or - cable
Ignition key can be removed in off position, current flow disconnected
2 screw connections, 2 switch positions: 0 = off, 1 = on
Power rating max.: 1000A at 12V (10 sec.) 500A at 24V (10 sec.)
Power rating at steady state max. 50A at max. 80°C ambient temperature and a cable connected with ring lug of at least 35 mm²turning actuationcloser
Weight: 164 g
