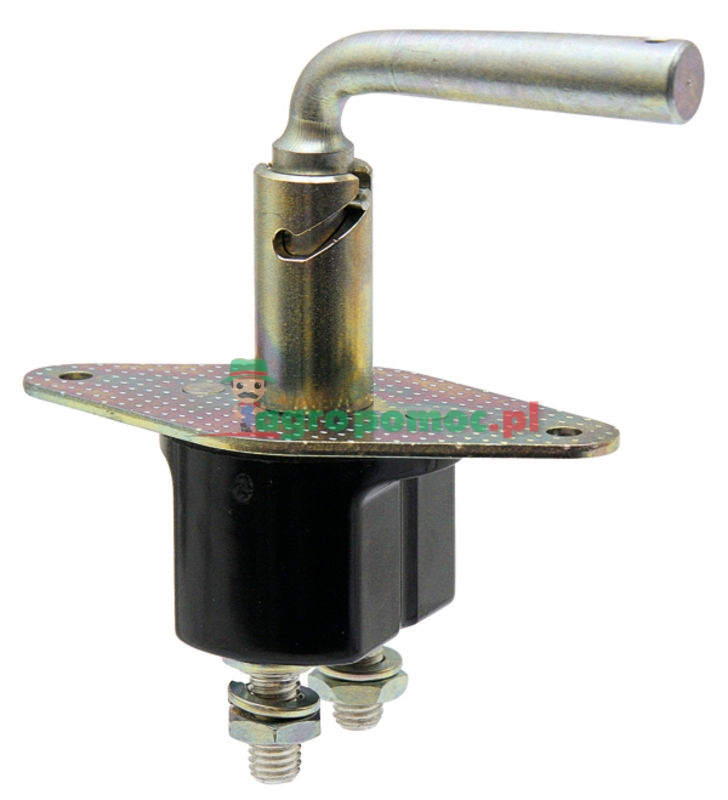

Hella Disconnector

Product code: 4556EK 001559001

Price: 170.66170,66 € Inc. VAT

Availability: in a warehouse

Description

Price unit: piece
Pack of: 1

Availability

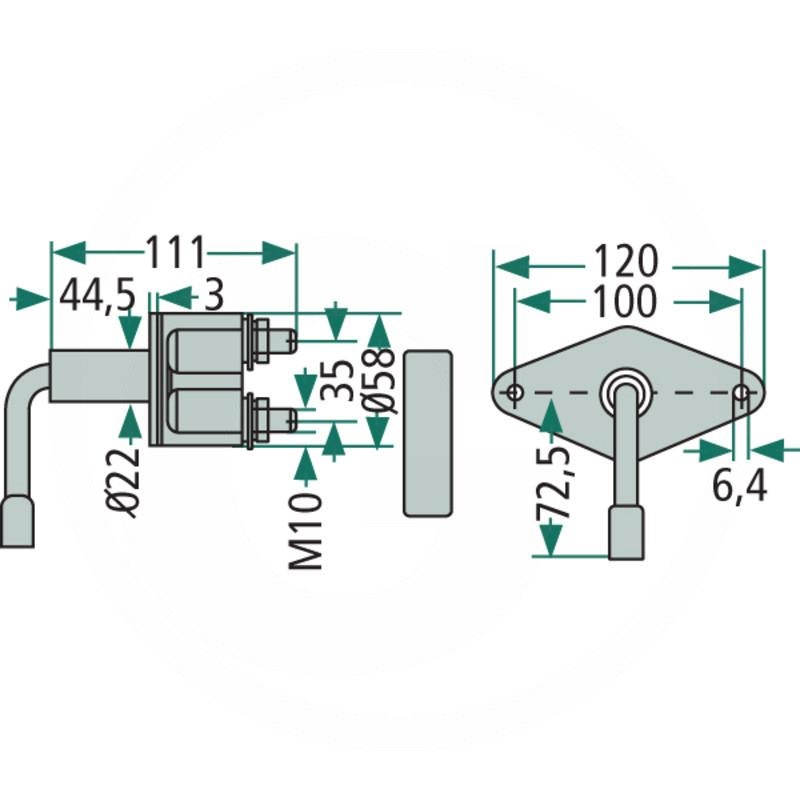

Fig. no.: 1

Version: For battery main cable, with ignition key, optional circuit for + or - cable
Ignition key can be removed in off position, current flow disconnected
2 screw connections, 2 switch position: 0 = off, 1 = on
Max. power rating: 2500A at 24V (10 sec.)
Power rating at steady state max. 100A at max. 60°C ambient temperature and a cable of at least 50 mm², which is attached with annular lugsturning actuationcloser
Reference no.: John Deere: AL68661
Weight: 542 g
