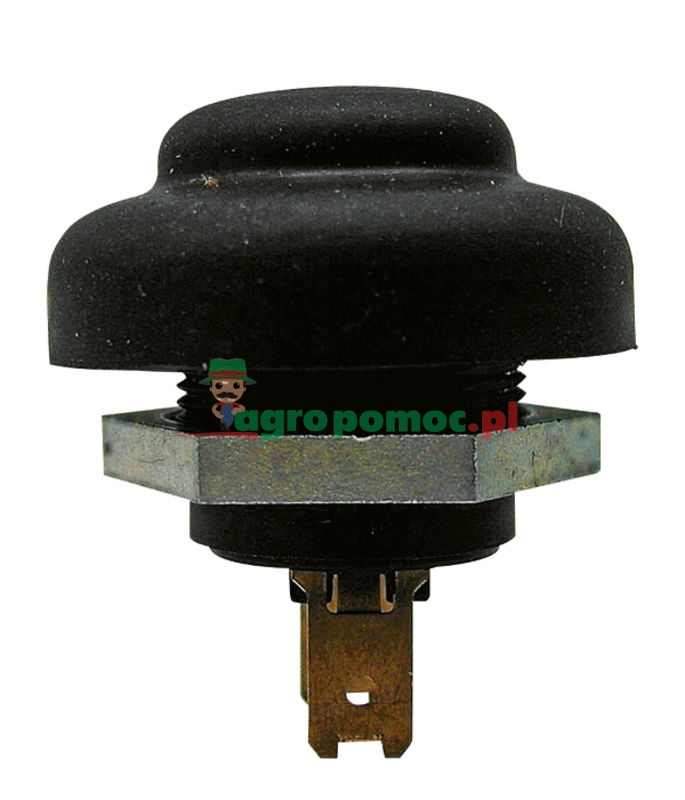

Hella Push button switch

Product code: 4556JF 001571041

Product reference: AL17684

Price: 23.3323,33 € Inc. VAT

Availability: in a warehouse

Hella Push button switch | AL17684 | zdjęcie nr 2

Description

Price unit: piece
Pack of: 1

Availability

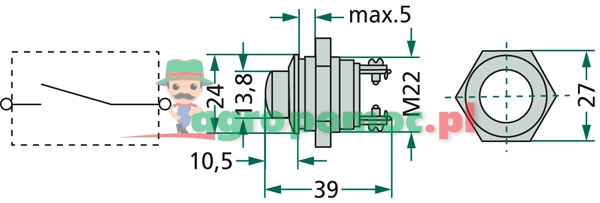

Fig. no.: 1

Version: For engine start and horn,
with damp proofing for push button,
2 blade terminal connections 6,3 mm,
Push button black,
For wall thickness up to max. 5 mm,
Short-term power rating: 20 A at 12 V, 15 A at 24 V
Weight: 16 g

Types:
820, 830, 920, 930, 940,
1020, 1030, 1035, 1040,
1120, 1130, 1140, 1350,
1550, 1630, 1635, 1640,
1750, 1750V, 1830, 1840,
1850, 1850F, 1850N, 1850V,
1950, 1950F, 1950N,
2020, 2030, 2035, 2040,
2040S, 2120, 2130, 2135,
2140, 2250, 2250F, 2450,
2450F, 2650, 2650F, 2650N,
2850,
3030, 3040, 3050, 3120,
3130, 3135, 3140, 3150,
3350, 3640, 3640S, 3650,
5200, 5220, 5300, 5320,
5320N, 5400, 5400N, 5420,
5420N, 5500, 5500N, 5520,
5520N
