Description
Price unit:
Pack of: 1
Pack of: 1
Availability

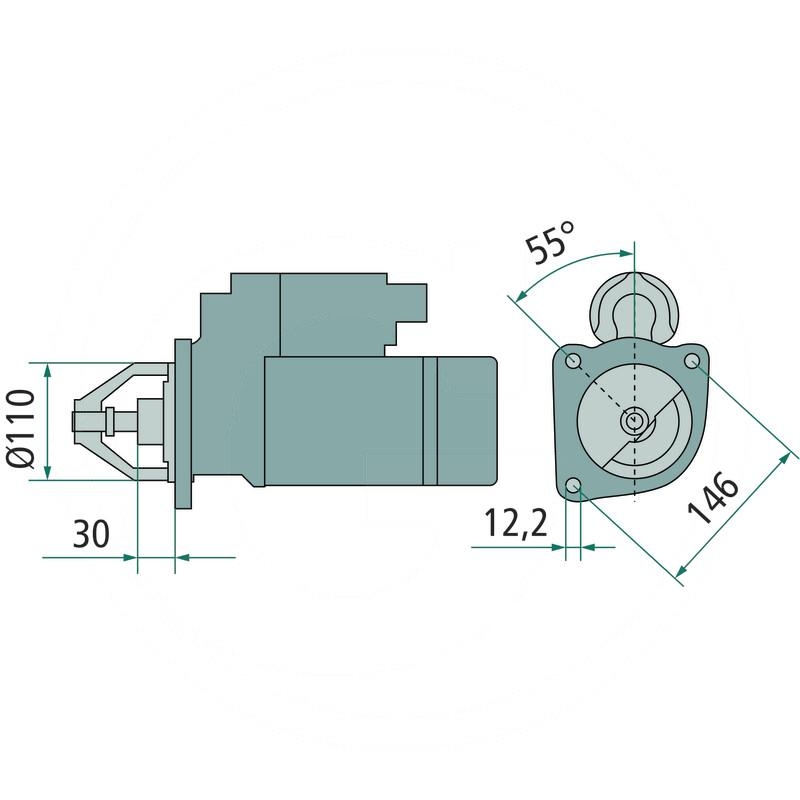

- Attachment, no. of holes H x spacing D (mm) x Ø (mm): 3 x 146 x 12,2
- Fitting Ø (mm): 110
- Installation angle (α = degrees °): L55
- No. of pinion teeth: 9
- Nominal power (kW): 3,2
- Nominal voltage (V): 12
- Spacing flange to flywheel (mm): 30
- Special features: Reduction gear starter
- replaces: IS0409, IS0618
