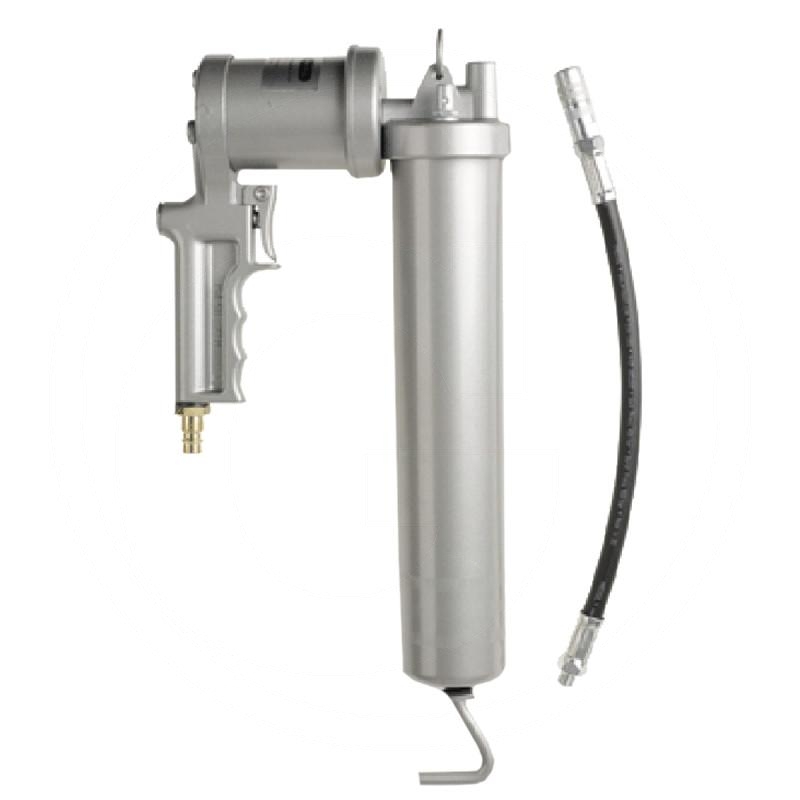

• Version: Grease gun connection pressure side: M10 x 1Filling nipple and vent valve: M10 x 1Filling volume (cm³): 500Filling options: 400 g grease cartridge, DIN 1284, grease filling equipment or bulk greaseTransmission ratio: 50:1 Grease delivery to grease gun head: by means of spring force Diameter of grease pump piston (mm): 6Operation of grease pump piston: single-stroke grease deliveryDelivery volume/stroke (cm³): 0,8Recommended air pressure (bar): 6Minimum air pressure (bar): 2Maximum air pressure (bar): 8Pneumatic connection: quick coupling Rectus, type 26Pump pressure at compressed air pressure of 8 bar (bar): 400System burst pressure (bar): 850Grease gun head burst pressure (bar): 1200Push rod operation: via L-gripCover: looseGrease gun tube wall thickness (mm): 1,0 Specifications · Reinforced hose, M 10 x 1 male, 11 x 300 mm · Precision mouthpiece, 4 BA, M 10 x 1 female · Filling nipple (FN), M 10 x 1 maleSpecial features · The device is suitable for use with
• Technical data: Grease gun connection pressure side: M10 x 1Filling nipple and vent valve: M10 x 1Filling volume (cm³): 500Filling options: 400 g grease cartridge, DIN 1284, grease filling equipment or bulk greaseTransmission ratio: 50:1 Grease delivery to grease gun head: by means of spring force Diameter of grease pump piston (mm): 6Operation of grease pump piston: single-stroke grease deliveryDelivery volume/stroke (cm³): 0,8Recommended air pressure (bar): 6Minimum air pressure (bar): 2Maximum air pressure (bar): 8Pneumatic connection: quick coupling Rectus, type 26Pump pressure at compressed air pressure of 8 bar (bar): 400System burst pressure (bar): 850Grease gun head burst pressure (bar): 1200Push rod operation: via L-gripCover: looseGrease gun tube wall thickness (mm): 1,0 Specifications · Reinforced hose, M 10 x 1 male, 11 x 300 mm · Precision mouthpiece, 4 BA, M 10 x 1 female · Filling nipple (FN), M 10 x 1 maleSpecial features · The device is suitable for use with
• Weight: 2.08 kg

Page 1113
