• Chain no.: RE425

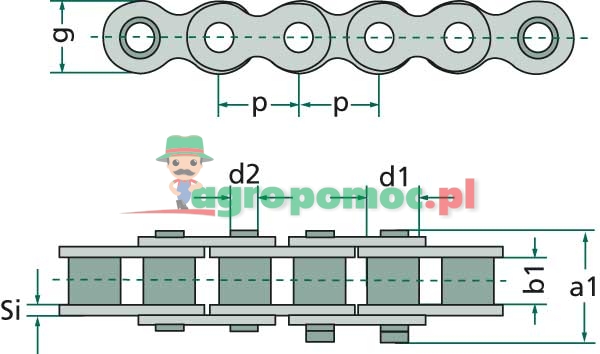

• Pitch p (imperial): 3/4"
• Pitch p (mm): 19,05
• Clearance width b1 (mm): 13,5
• Roller Ø d1 (mm): 12,07
• Bolt Ø d2 max. (mm): 5,72
• Fishplate height g (mm): 16,8
• Length of pin (mm): a1 max.: 27
• Breaking load DIN/ISO min. (N): 33500
• Inner fishplate thickness Si (mm): 2,9
• Pin Ø d2 max. (mm): 5,72
• Pitch x inner width p x b1 (imperial): 3/4" x 17/32"
• Pitch x inner width p x b1 min. (mm): 19,05 x 13,50
• Roll length (m): 5
• Roller Ø d1 max. (mm): 12,07
• Weight: 8.03 kg
