• Chain no.: RE317

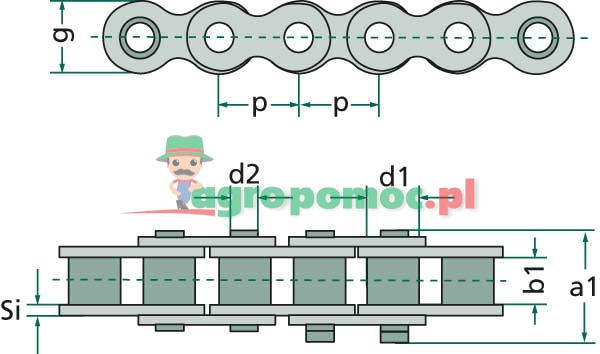

• Pitch p (imperial): 5/8"
• Pitch p (mm): 15,875
• Clearance width b1 (mm): 6,48
• Roller Ø d1 (mm): 10,16
• Bolt Ø d2 max. (mm): 5,08
• Fishplate height g (mm): 14,7
• Length of pin (mm): a1 max.: 16
• Breaking load DIN/ISO min. (N): 23600
• Inner fishplate thickness Si (mm): 1,5
• Pin Ø d2 max. (mm): 5,08
• Pitch x inner width p x b1 (imperial): 5/8" x 1/4"
• Pitch x inner width p x b1 min. (mm): 15,88 x 6,48
• Roll length (m): 5
• Roller Ø d1 max. (mm): 10,16
• Weight: 4.26 kg
