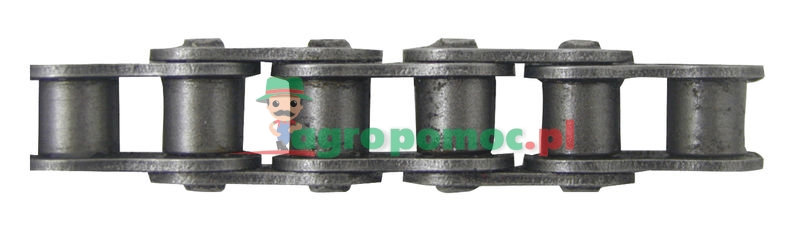

• ANSI no.: 60 H-1
• Pitch p (imperial): 3/4"
• Pitch p (mm): 19,05
• Clearance width b1 (mm): 12,57
• Roller Ø d1 (mm): 11,91
• Bolt Ø d2 max. (mm): 5,94
• Strap thickness si (mm): 3,05
• Fishplate height g (mm): 17,7
• Length of pin (mm): a1 max.: 28,8
• Breaking load DIN/ISO min. (N): 31300
• Inner link width b2 max. (mm): 19,35
• Max. width connecting link a1 (mm): 32
• Pin Ø d2 max. (mm): 5,94
• Pitch x inner width p x b1 (imperial): 3/4 x 1/2
• Pitch x inner width p x b1: 19,05 x 12,57
• Roll length (m): 5
• Roller Ø d1 max. (mm): 11,91
• Weight: 9.41 kg
