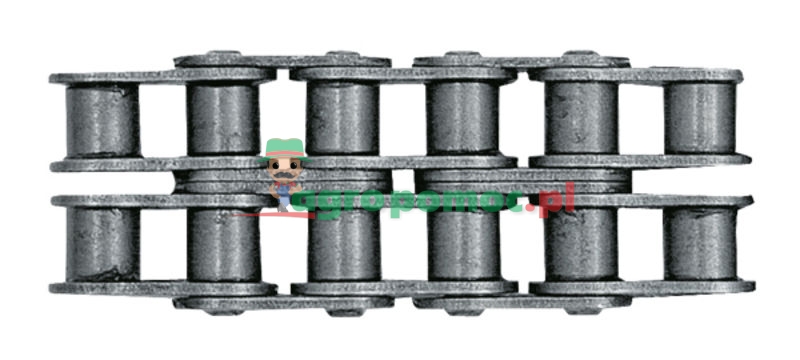

Rexnord Roller chain
Product code: 835RPASA100-2/5
Price:
1 474,01 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

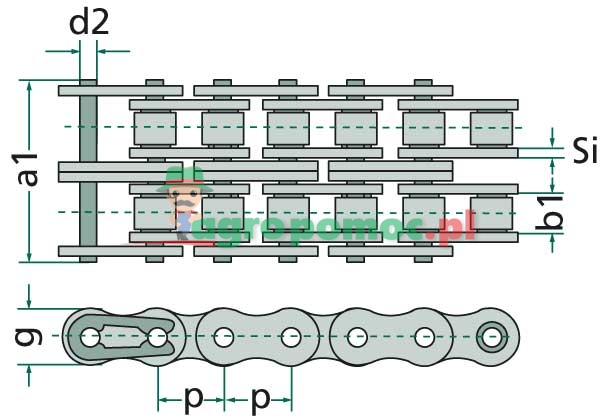

- ANSI no.: 100-2
- Pitch p (imperial): 1 1/4"
- Pitch p (mm): 31,75
- Clearance width b1 (mm): 18,9
- Roller Ø d1 (mm): 19,05
- Bolt Ø d2 max. (mm): 9,53
- Fishplate height g (mm): 29,2
- Length of pin (mm): a1 max.: 75,3
- Breaking load DIN/ISO min. (N): 174000
- Inner link width b2 max. (mm): 27,4
- Weight: 8 kg
