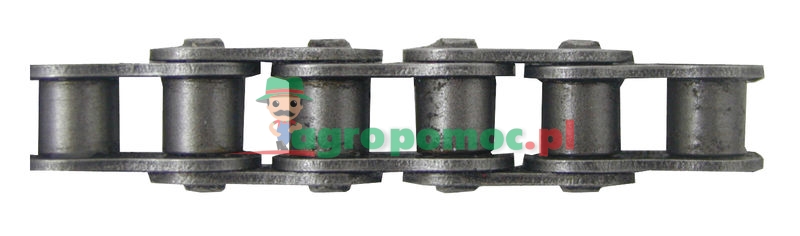

Rexnord Roller chain
Product code: 835RPASA140-1/5
Price:
1 352,63 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

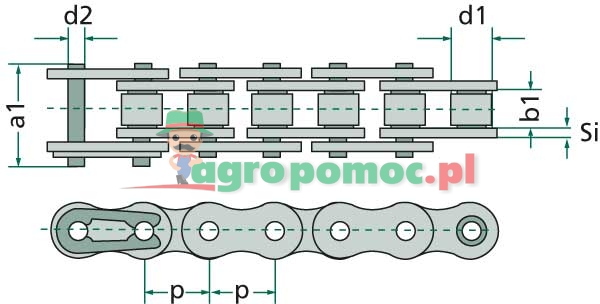

- ANSI no.: 140-1
- Pitch p (imperial): 1 3/4"
- Pitch p (mm): 44,45
- Clearance width b1 (mm): 25,22
- Roller Ø d1 (mm): 25,4
- Bolt Ø d2 max. (mm): 12,7
- Inner link width b2 max. (mm): 37,000
- Fishplate height g (mm): 40,8
- Length of pin (mm): a1 max.: 53,4
- Breaking load DIN/ISO min. (N): 170000
- Weight: 3.29 kg
