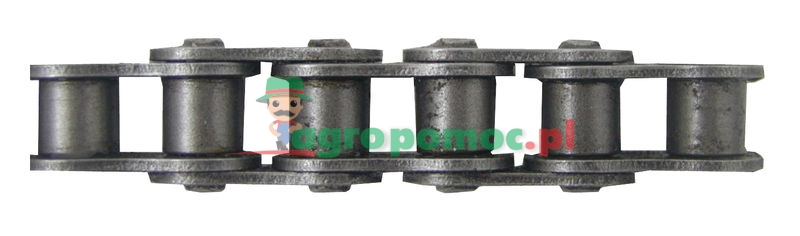

Rexnord Roller chain
Product code: 835RPASA120-1/5
Price:
838,12 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

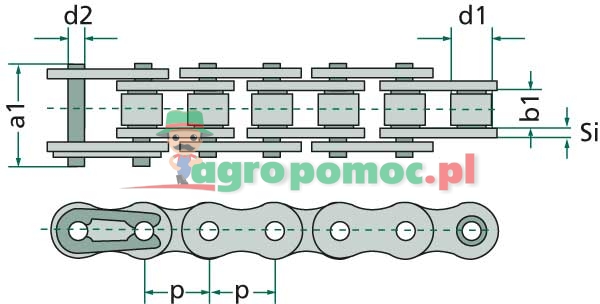

- ANSI no.: 120-1
- Pitch p (imperial): 1 1/2"
- Pitch p (mm): 38,1
- Clearance width b1 (mm): 25,22
- Roller Ø d1 (mm): 22,23
- Bolt Ø d2 max. (mm): 11,1
- Inner link width b2 max. (mm): 35,300
- Fishplate height g (mm): 34,4
- Length of pin (mm): a1 max.: 49,8
- Breaking load DIN/ISO min. (N): 125000
- Weight: 5.5 kg
