• ANSI no.: 80-1

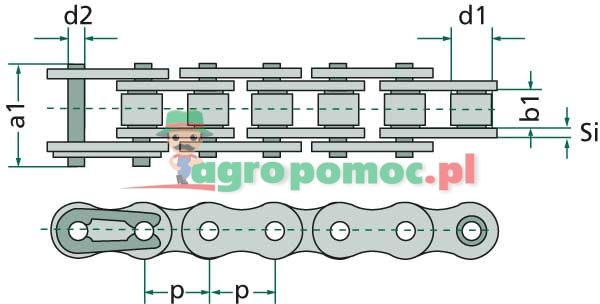

• Pitch p (imperial): 1"
• Pitch p (mm): 25,4
• Clearance width b1 (mm): 15,75
• Roller Ø d1 (mm): 15,88
• Bolt Ø d2 max. (mm): 7,92
• Inner link width b2 max. (mm): 22,500
• Fishplate height g (mm): 23,5
• Length of pin (mm): a1 max.: 33
• Breaking load DIN/ISO min. (N): 55600
• ISO no.: 16 A-1
• Max. width connecting link a1 (mm): 38
• Pin Ø d2 max. (mm): 7,92
• Pitch x inner width p x b1 (imperial): 1" x 5/8"
• Pitch x inner width p x b1: 25,40 x 15,75
• Pitch x inner width p x b1 min. (mm): 25,40 x 15,75
• Roll length (m): 5
• Roller Ø d1 max. (mm): 15,88
• Weight: 2.6 kg
