• ANSI no.: 50-1

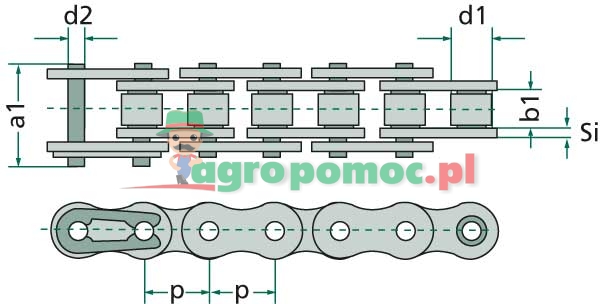

• Pitch p (imperial): 5/8"
• Pitch p (mm): 15,87
• Clearance width b1 (mm): 9,4
• Roller Ø d1 (mm): 10,16
• Bolt Ø d2 max. (mm): 5,08
• Inner link width b2 max. (mm): 13,800
• Fishplate height g (mm): 14,6
• Length of pin (mm): a1 max.: 20,3
• Breaking load DIN/ISO min. (N): 21800
• ISO no.: 10 A-1
• Max. width connecting link a1 (mm): 22
• Pin Ø d2 max. (mm): 5,08
• Pitch x inner width p x b1 (imperial): 5/8" x 3/8"
• Pitch x inner width p x b1: 15,875 x 12,57
• Pitch x inner width p x b1 min. (mm): 15,88 x 9,40
• Roll length (m): 5
• Roller Ø d1 max. (mm): 10,16
• Weight: 5.47 kg
