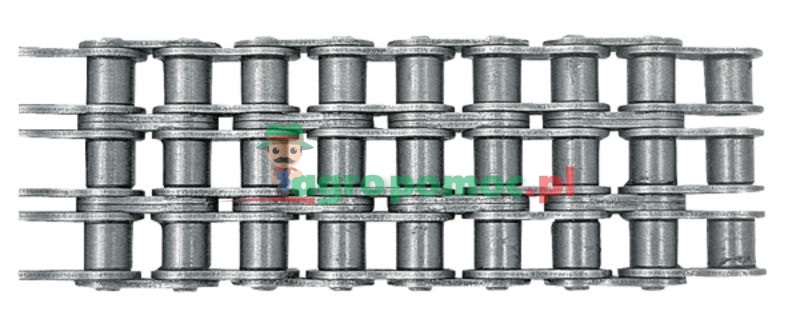

Rexnord Roller chain
Product code: 835RP12B-3/5
Price:
784,15 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

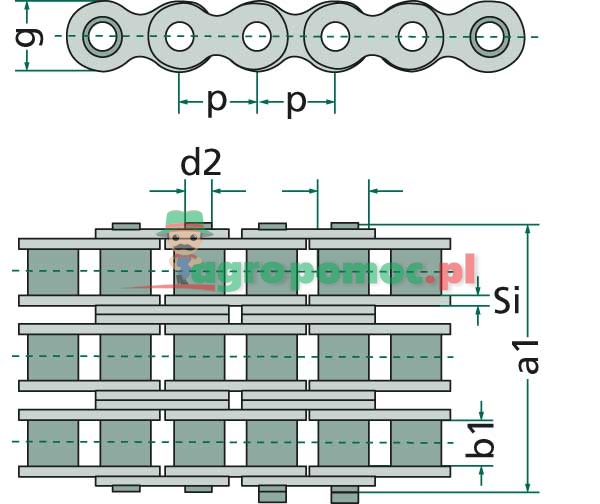

- ISO no.: 12 B-3
- Pitch x inner width p x b1 (imperial): 3/4" x 7/16"
- Pitch p (imperial): 0,75
- Pitch p (mm): 19,05
- Clearance width b1 (mm): 11,68
- Roller Ø d1 (mm): 12,07
- Bolt Ø d2 max. (mm): 5,72
- Fishplate height g (mm): 15,9
- Length of pin (mm): a1 max.: 61,7
- Breaking load DIN/ISO min. (N): 86700
- Inner link width b2 max. (mm): 15,62
- Weight: 17.85 kg
