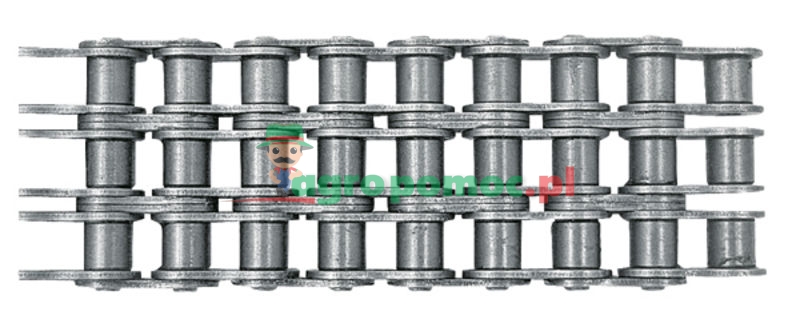

Rexnord Roller chain
Product code: 835RP10B-3/5
Price:
739,24 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability
- ISO no.: 10 B-3

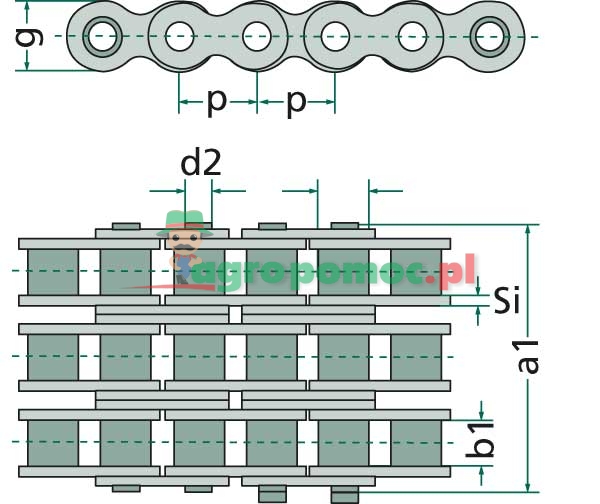

- Pitch x inner width p x b1 (imperial): 5/8" x 3/8"
- Pitch p (imperial): 0,625
- Pitch p (mm): 15,87
- Clearance width b1 (mm): 9,65
- Roller Ø d1 (mm): 10,16
- Bolt Ø d2 max. (mm): 5,08
- Fishplate height g (mm): 14,6
- Length of pin (mm): a1 max.: 52,8
- Breaking load DIN/ISO min. (N): 66700
- Inner link width b2 max. (mm): 13,28
- Weight: 13.96 kg
