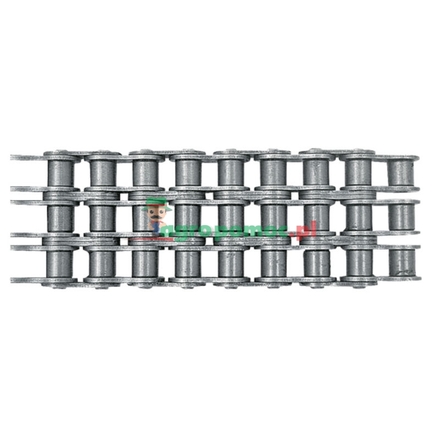

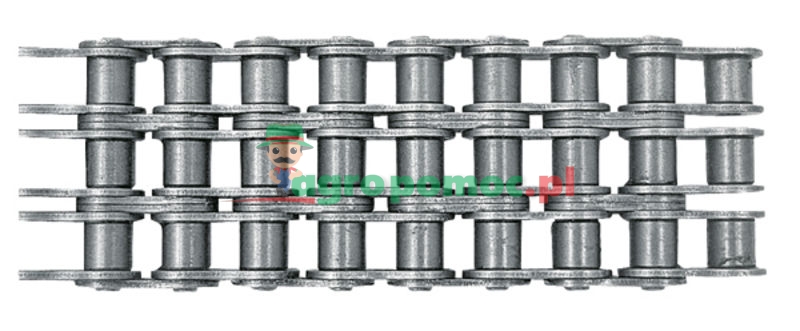

Rexnord Chain
Product code: 835RP06B-3/5
Price:
530,28 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

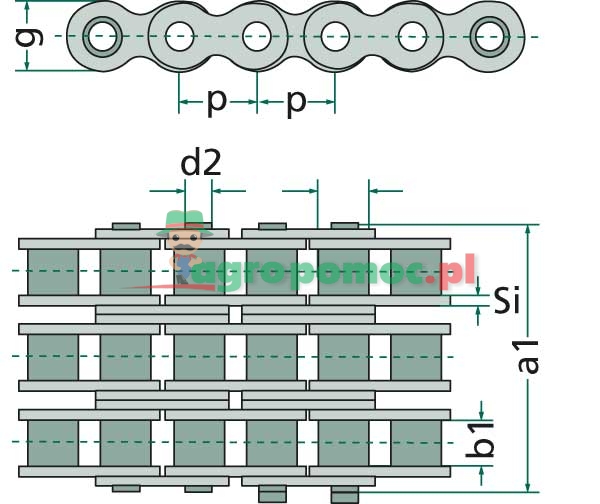

- ISO no.: 06 B-3
- Pitch x inner width p x b1 (imperial): 3/8" x 7/32"
- Pitch p (imperial): 0,375
- Pitch p (mm): 9,52
- Clearance width b1 (mm): 5,72
- Roller Ø d1 (mm): 6,35
- Bolt Ø d2 max. (mm): 3,28
- Fishplate height g (mm): 8,3
- Length of pin (mm): a1 max.: 34
- Breaking load DIN/ISO min. (N): 24900
- Inner link width b2 max. (mm): 8,53
- Weight: 4.67 kg
