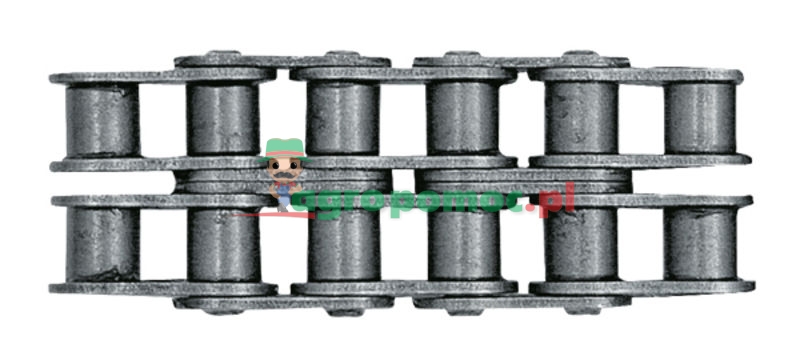

Rexnord 5m RexPro 28B-2 chain
Product code: 835RP28B-2/5
Price:
3 096,65 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5
Pack of: 5
Availability

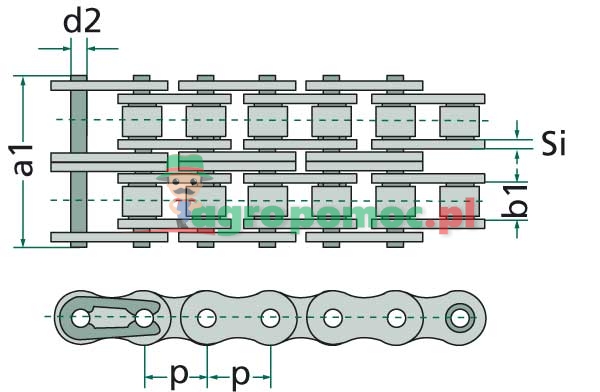

- ISO no.: 28 B-2
- Pitch x inner width p x b1 (imperial): 1 3/4" x 1 1/4"
- Pitch p (imperial): 1,75
- Pitch p (mm): 44,45
- Clearance width b1 (mm): 30,99
- Roller Ø d1 (mm): 27,94
- Bolt Ø d2 max. (mm): 15,9
- Inner link width b2 max. (mm): 46,5
- Fishplate height g (mm): 37
- Length of pin (mm): a1 max.: 122,8
- Breaking load DIN/ISO min. (N): 360000
- Weight: 17.3 kg
