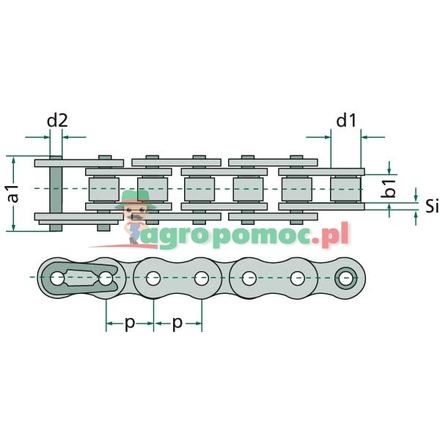

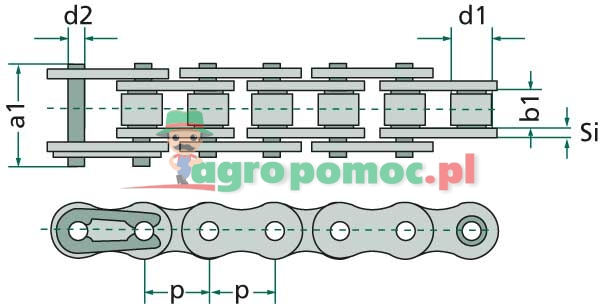

• ISO no.: 12 B-1
• Pitch x inner width p x b1 (imperial): 3/4" x 7/16"
• Pitch p (imperial): 0,75
• Pitch p (mm): 19,05
• Clearance width b1 (mm): 11,68
• Roller Ø d1 (mm): 12,07
• Bolt Ø d2 max. (mm): 5,72
• Inner link width b2 max. (mm): 15,62
• Fishplate height g (mm): 15,9
• Length of pin (mm): a1 max.: 22,7
• Breaking load DIN/ISO min. (N): 28900
• Max. width connecting link a1 (mm): 22,7
• PP: 1
• Pin Ø d2 max. (mm): 5,72
• Pitch x inner width p x b1 min. (mm): 19,05 x 11,68
• Position: 50
• Roll length (m): 5
• Roller Ø d1 max. (mm): 12,07
• Weight: 6.17 kg
