• ISO no.: 08 A-1

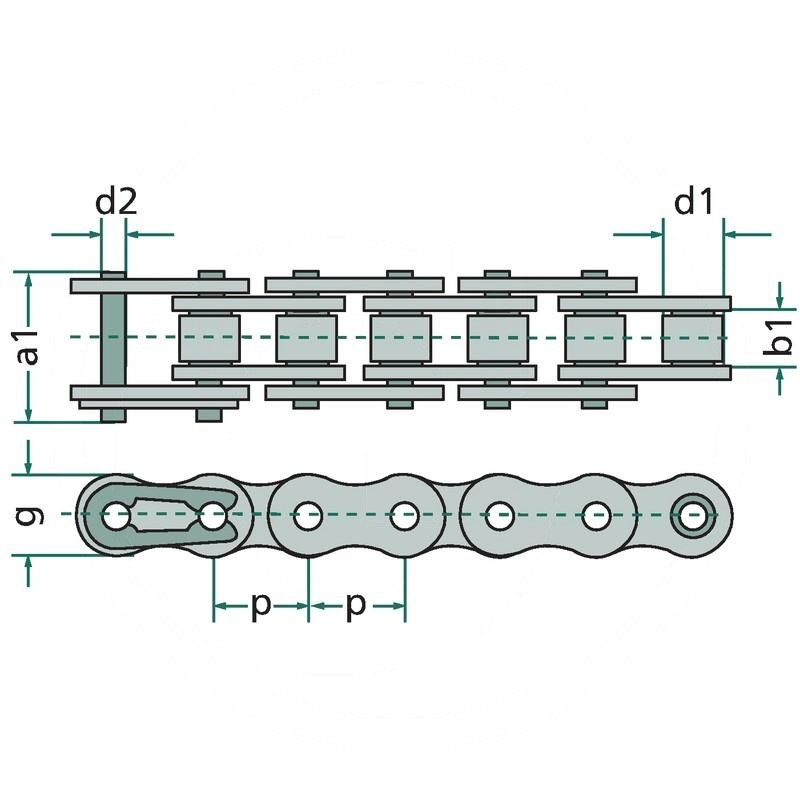

• Pitch x inner width p x b1 (imperial): 1/2 x 5/16
• Pitch x inner width p x b1 (mm): 12,70 x 7,75
• Roller Ø d1 max. (mm): 7,95
• Pin Ø d2 max. (mm): 3,96
• Inner fishplate thickness Si (mm): 1,5
• Max. width connecting link a1 (mm): 16,6
• Breaking load DIN/ISO min. (N): 14100
• Pitch x inner width p x b1: 12,7 x 7,85
• Weight: 3.16 kg
