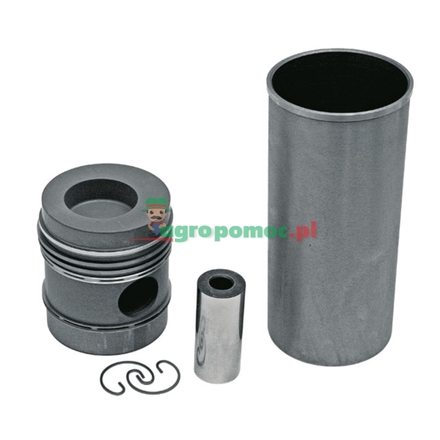

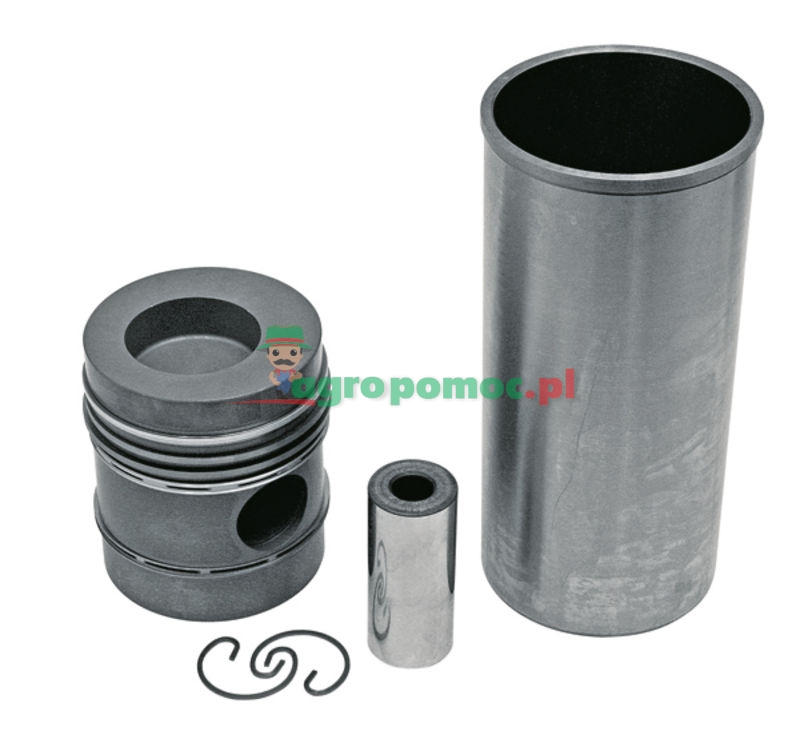

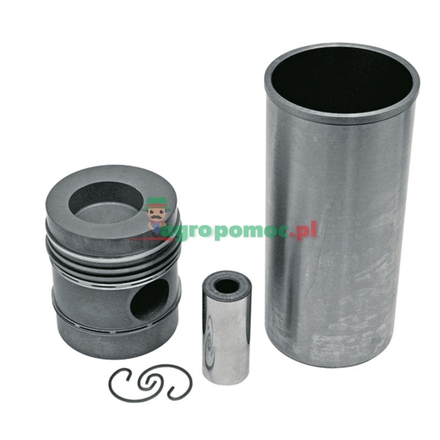

Piston set complete
Product code: 38016107
Price:
363,83 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
piece
Pack of: 1
Pack of: 1
Availability
* Please note:
liner is not fully machined.
liner is not fully machined.
Engine type
OM314, OM341, OM352, OM353, OM394,
OM314, OM341, OM352, OM353, OM394,
-

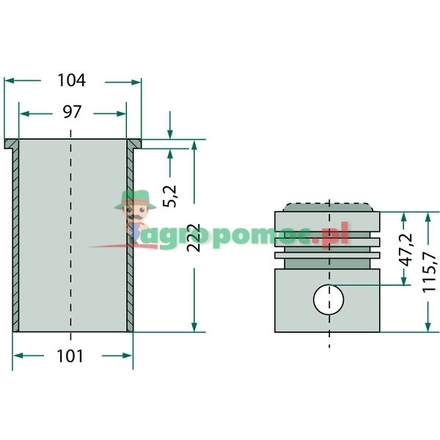

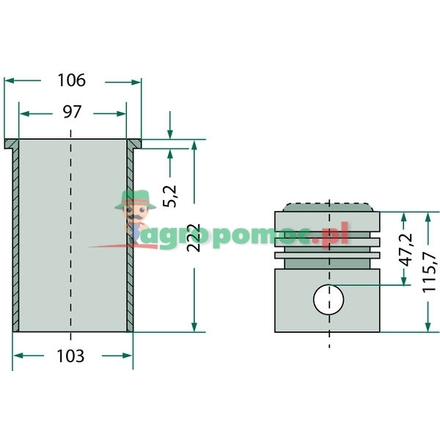

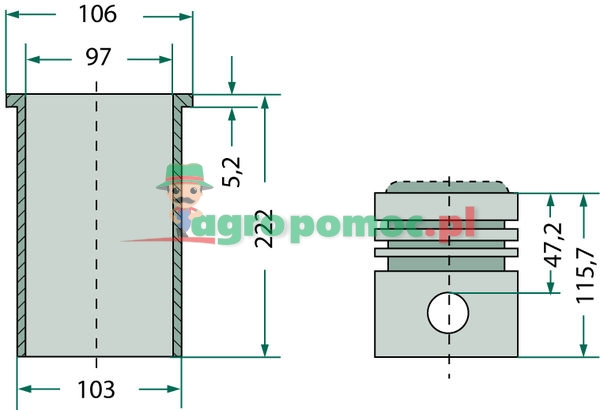

Dimensions:
5 rings, Ø 97 mm
gudgeon pin Ø 36 x 82,5 mm
combustion chamber Ø 55 mm
combustion chamber depth 20 mm
oversize liner with 2,60 mm external height,
ring carrier piston, piston with lower ring
Types:
MB Trac 65/70, 700, 800, 1000, 1100, 1300, U 54, 65, 66, 70, 72, 80, 84, 90, 95, 100, 110, 120, 125, 800, 900, 1000, 1100, 1150, 1200, 1250, 1300, 1550
MB Trac 65/70, 700, 800, 1000, 1100, 1300, U 54, 65, 66, 70, 72, 80, 84, 90, 95, 100, 110, 120, 125, 800, 900, 1000, 1100, 1150, 1200, 1250, 1300, 1550
