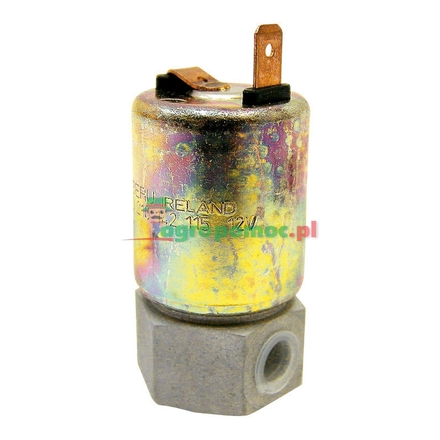

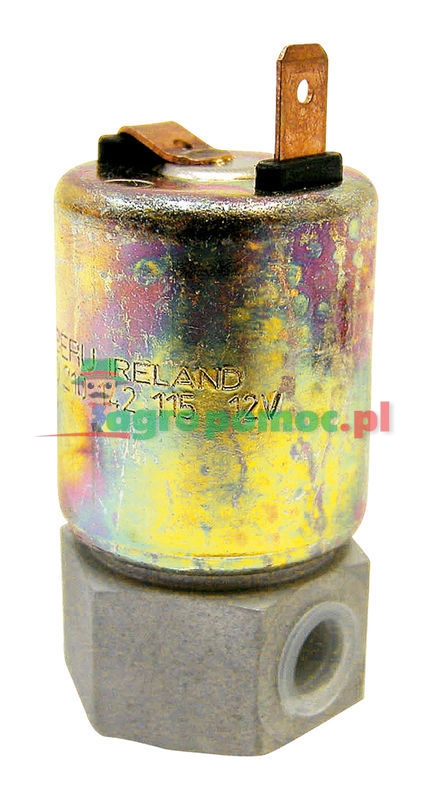

Solenoid valve

Product code: 507MV115

Product reference: 0210142115

Price: 219.17219,17 € Inc. VAT

Availability: in a warehouse

Description

Price unit: piece
Pack of: 1

Availability

Technical data: 12 volt, 20 watt, coil resistor: 8 ± 0,5 ohm at 20° C Power-on time (ED): 100% Valve function: normal position closed, Electric connection, unipolar Installation position: universal, Operation medium: diesel - and petrol Flow rate at 20°C and 500 mm descent: approx. 4l/h Inflow pressure: max. 10 bar Dynamic pressure surge: max. 45 bar Increase of pressure: max. 60 bar/ms, Admitted temperature range: from - 55°C to + 140°C Admitted acceleration of oscillation : 400 m/s² Protection class according to DIN 40 050: IP 60 Passage on the valve seat: Ø 1,5 mm Induction voltage: < 7,5 V Self holding level: < 3 V
Weight: 148 g
