Control unit

Price: 537.4537,40 Inc. VAT EUR
Add to cart
Control unit | 0521705035, 0521705038, 0521705509, 0521705519, 0521705521 | zdjęcie nr 1

Control unit

Product code: 85219002

Product reference: 0521705035, 0521705038, 0521705509, 0521705519, 0521705521

Control unit | 0521705035, 0521705038, 0521705509, 0521705519, 0521705521 | zdjęcie nr 2

Description

Price unit: piece
Pack of: 1
Availability
  • Technical data: max. operating pressure: 210 bar
    nominal flow: max. 70 l/min
    locking torque: 30 Nm
    connections: M 18 x 1,5
    dimensions: 210 x 50 x 130 mm

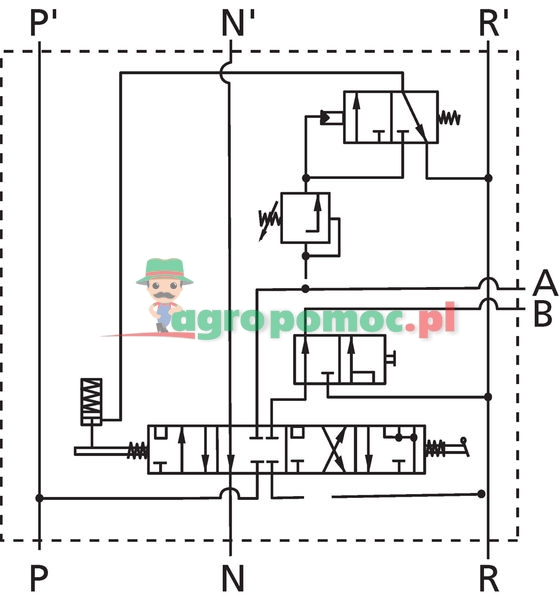

  • Description: This additional controller is a four-position device that can be used for double- and single-acting lifting cylinders. It has gate-sealed cylinder connections A and B. This means extremely low leakage rates under high load. The consumer connections A and B can be found on the top and bottom of the housing. The device has a stop position for lifting that is equipped with a hydraulic-automatic end-switch and which releases at 180 bar. When shifting beyond the lowering position, the locked floating position is engaged which cannot be released hydraulically (consumer connections A and B are connected with each other to the return). The floating position can be used on double- and single-acting lifting cylinders as stopped lowering position. The additional control device can be switched from double- to single-acting and vice versa even during operation. The control lever is included in delivery.
  • Weight: 5.89 kg
