• Pressure (bar): 20
• Flow rate (l/min): 10 - 200

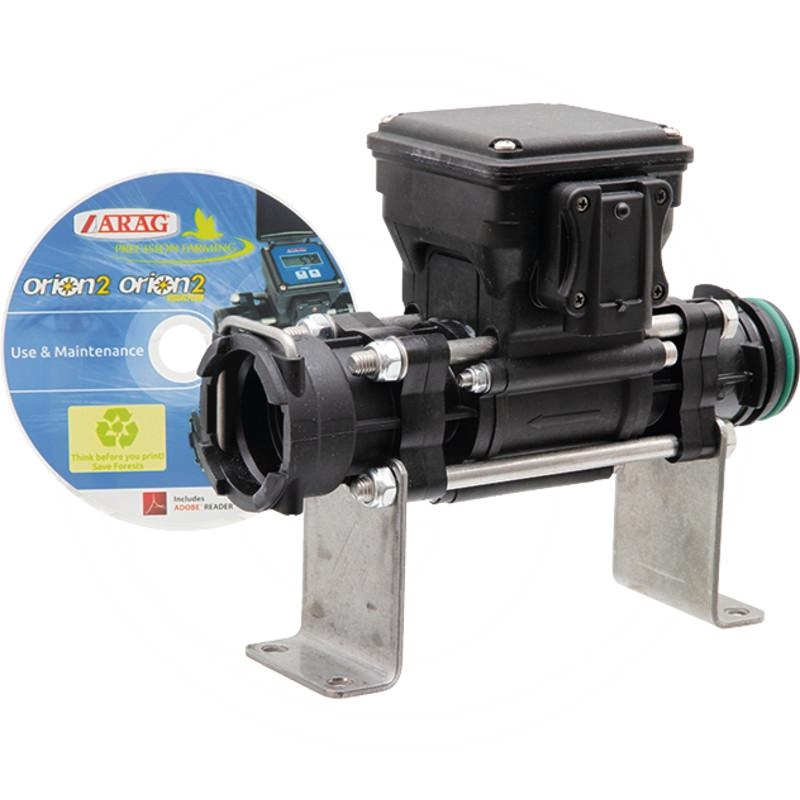

• Version: Electromagnetic flow meter 2
  • T5 fork connection with male/female thread for direct connection to control fittings
  • No mechanical moving parts
  • Insensitive to the density and viscosity of the liquid
  • Low sensitivity to turbulence
  • High level of accuracy
  • Low maintenance
  • Typical error 0,5% of the full-scale deflection
  • Supply voltage 11÷15 Vdc
  • Impulse output 0÷12 Vdc with frequency proportional to throughput
  • Maximum consumption 300 mA
  • Signal only emitted with moving liquids
  • Machine parts coming in contact with the spray liquid are made of polypropylene and stainless steel 316
  • Operating display LED
  • Integrated plug connector in housing
• Weight: 1.3 kg
