Description
Price unit:
piece
Pack of: 1
Pack of: 1
Availability
Fig. no.:
4

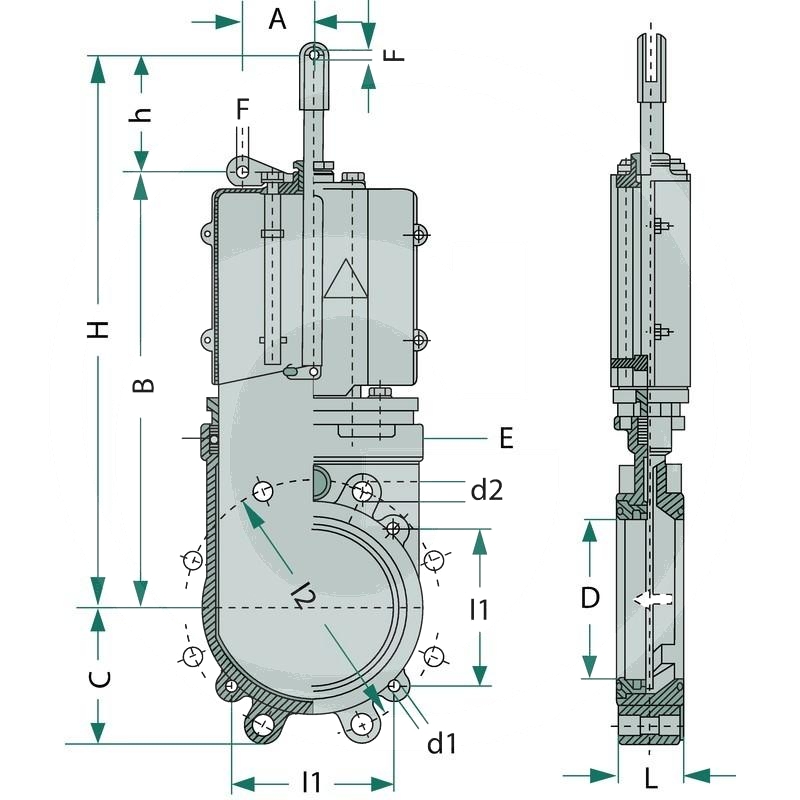

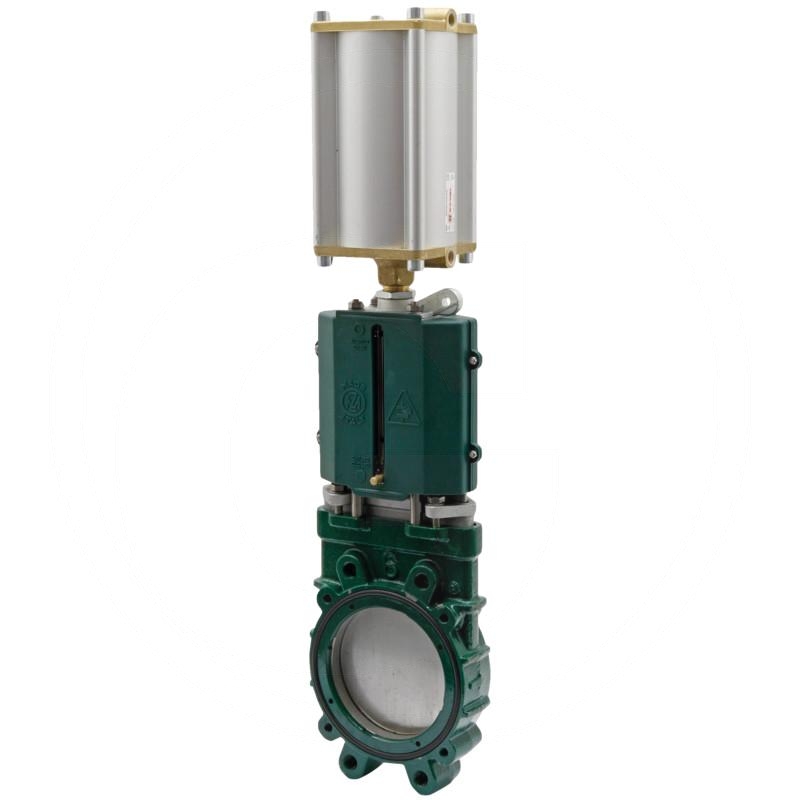

- Version: 6", with double acting pneumatic cylinders Art. 0575
- A (mm): 63
- B (mm): 415
- C (mm): 130
- D (mm): 150
- E (mm): 205
- F (mm): 10,5
- H (mm): 467
- h (mm): 712
- L (mm): 50
- l1 (mm): 150
- l2 (mm): 240
- d1 (mm): M12
- d2 (mm): M20
- Weight: 20.84 kg
Slurry & Sprayers
Page
69
