Description
Price unit:
piece
Pack of:
1
Availability
Delivery volume (cc):
108,3

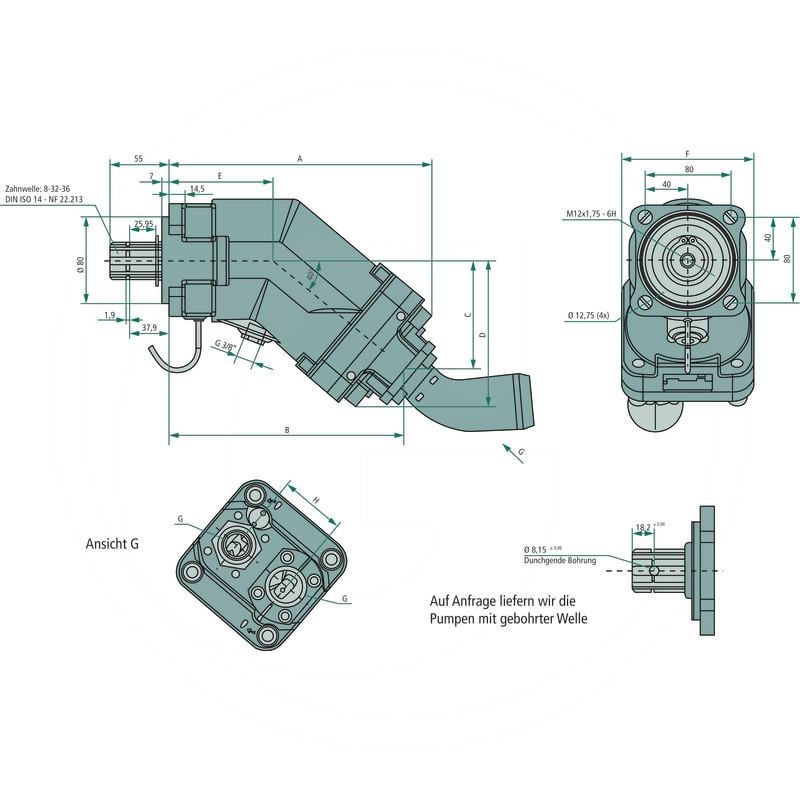

A (mm):
241,7
B (mm):
222,5
C (mm):
104,8
D (mm):
133,3
E (mm):
87,4
F (mm):
123
G (imperial):
G 1
H (mm):
60
Max. rotation speed with 2" suction line at 1 bar absolute pressure (rpm):
1900
Max. power consumption at 380 bar (Nm):
687
Weight (kg):
14.95 / 15.4
Tipping torque (Nm):
17.94 / 18.48
Weight:
10 g
