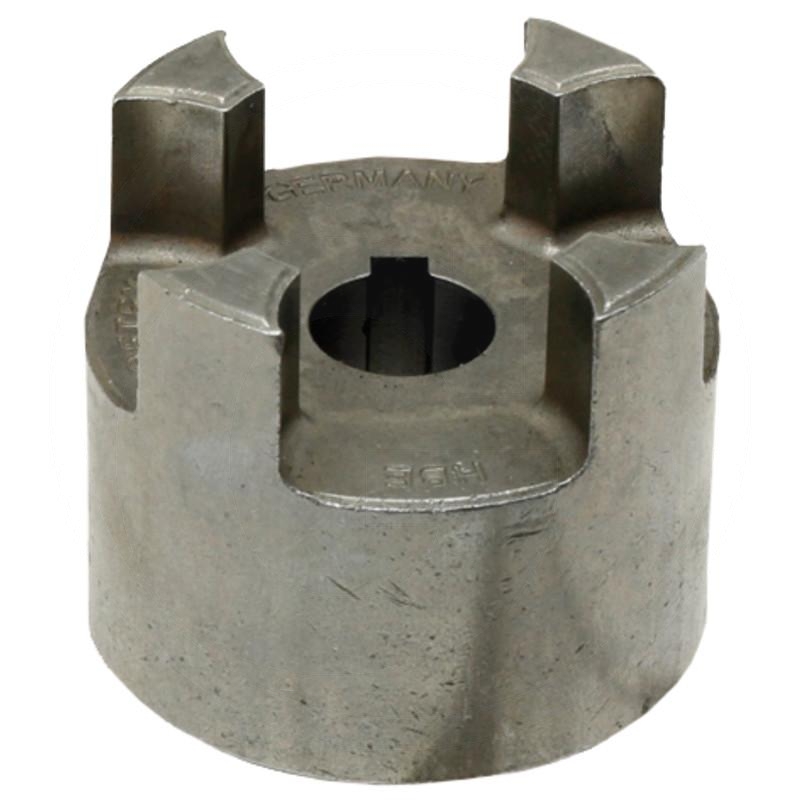

A38/45 B 42H7 coupling, cast
Product code: 85004142
Price:
€ Inc. VAT
128,08
Availability:
in a warehouse
Description
Price unit:
piece
Pack of: 1
Pack of: 1
Availability

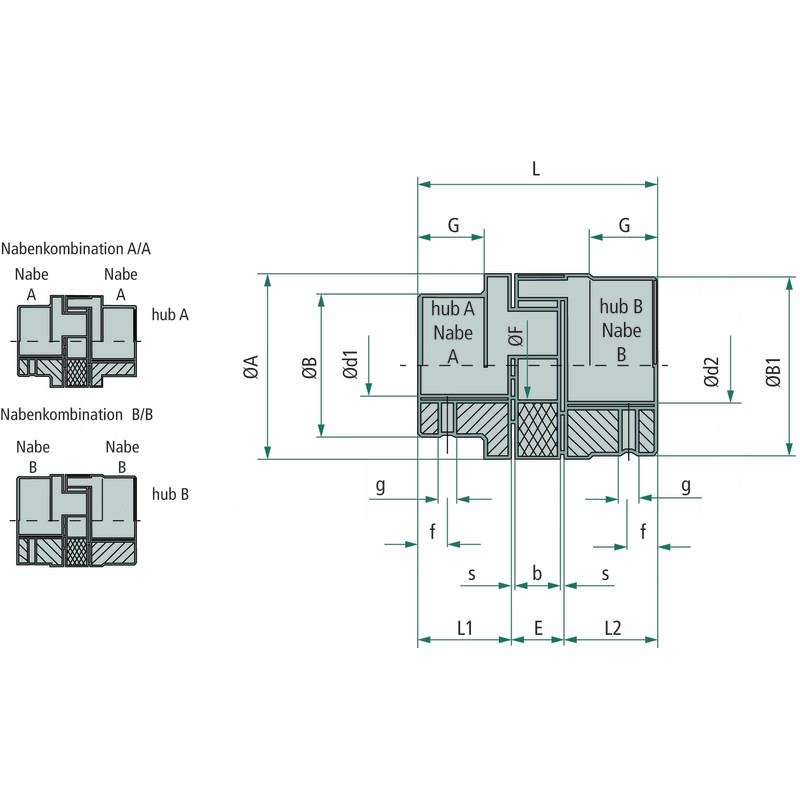

- d2 (mm): 42
- A (mm): 80
- B (mm): -
- B1 (mm): 78
- L (mm): 114
- L1 + L2 (mm): 45
- E (mm): 25
- S (mm): 3
- b (mm): 18
- G (mm): 37
- F (mm): 38
- g (mm): M8
- f (mm): 15
- Hole (mm): 42
- Groove width (mm): 12
- Weight: 1.22 kg
