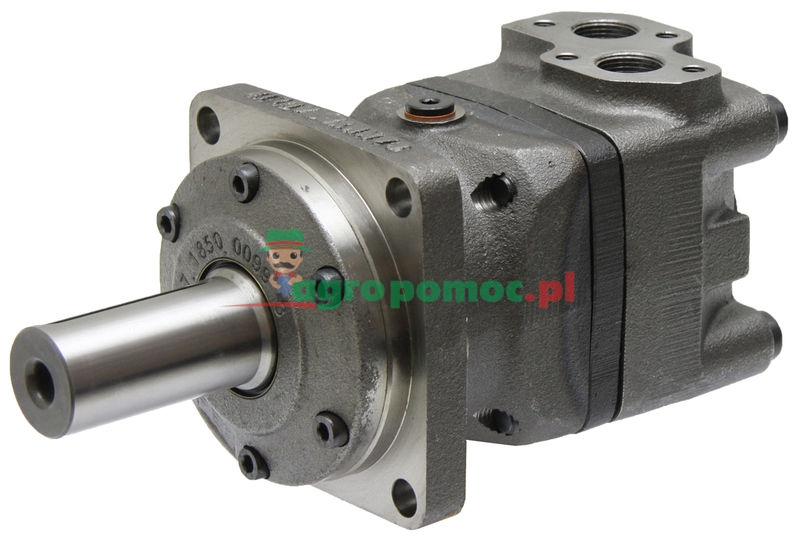

Motor BMT 160cc D=40mm 3/4
Product code: 87000860
Price:
€ Inc. VAT
593,07
Availability:
in a warehouse
Description
Availability
- Reference no. Danfoss: OMT 160
- Reference no. S.A.M Hydraulics: HT S 160
- Output volume (cc/rev): 161,1
- Shaft Ø (mm): 40
- Connection A (BSP): 3/4"
- Connection T (BSP): 1/4"

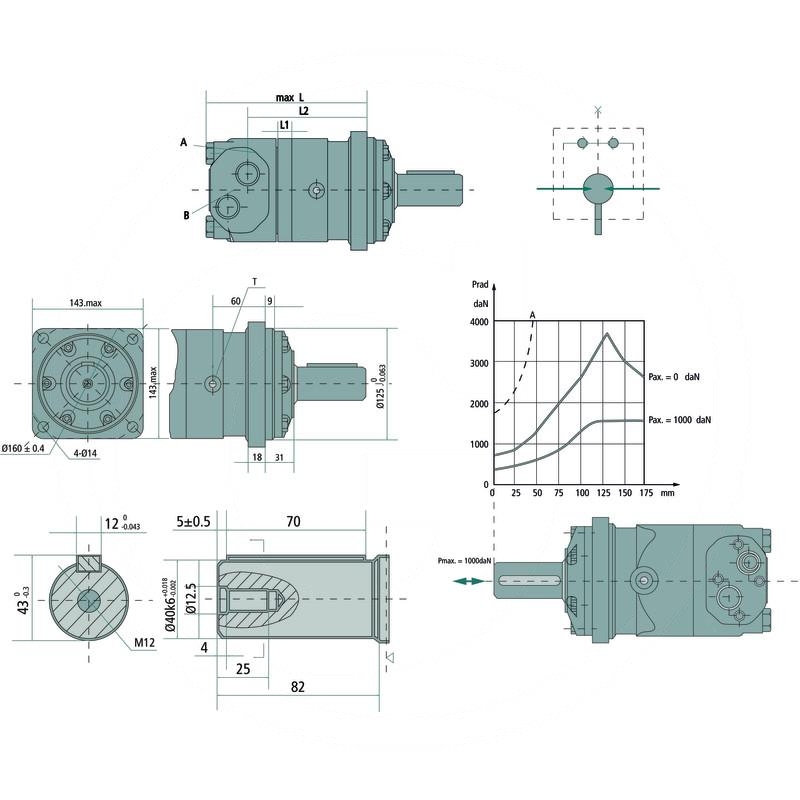

- L (mm): 193
- L1 (mm): 17
- L2 (mm): 142,5
- max r.p.m.: 614
- Torque max. (Nm): 471
- Power max. (kW): 18,7
- Inlet pressure (bar): 210
- Pressure difference (bar): 200
- Volume flow max. (l/min): 100
- Weight: 20 kg
