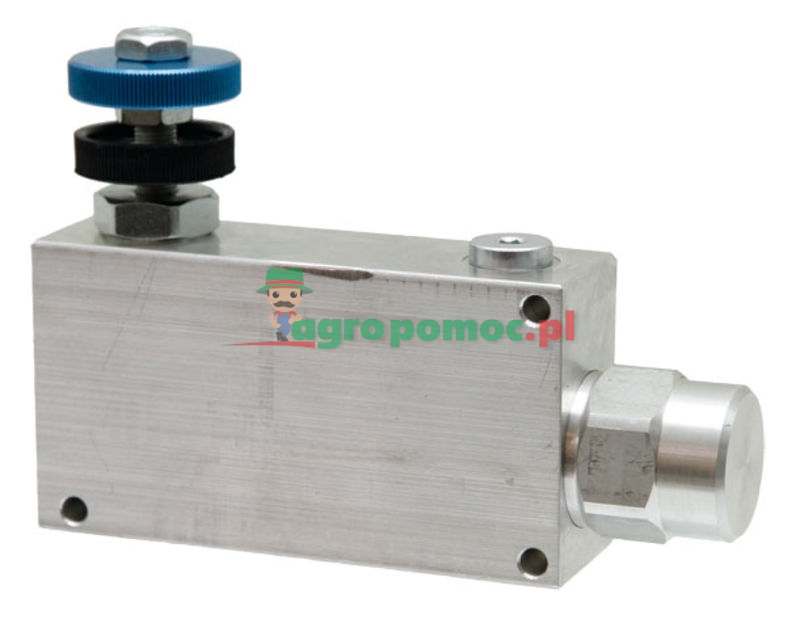

3-way flow-regulating valve DWST-P-08
Product code: 85036039Product reference: DWST-P-08
Price:
189,14 € Inc. VAT
Availability:
in a warehouse
Description
- Connection BSP: 1/2"
- P max (bar): 350
- Q-E max. (l/min): 80
- Q-P max. (l/min): 60

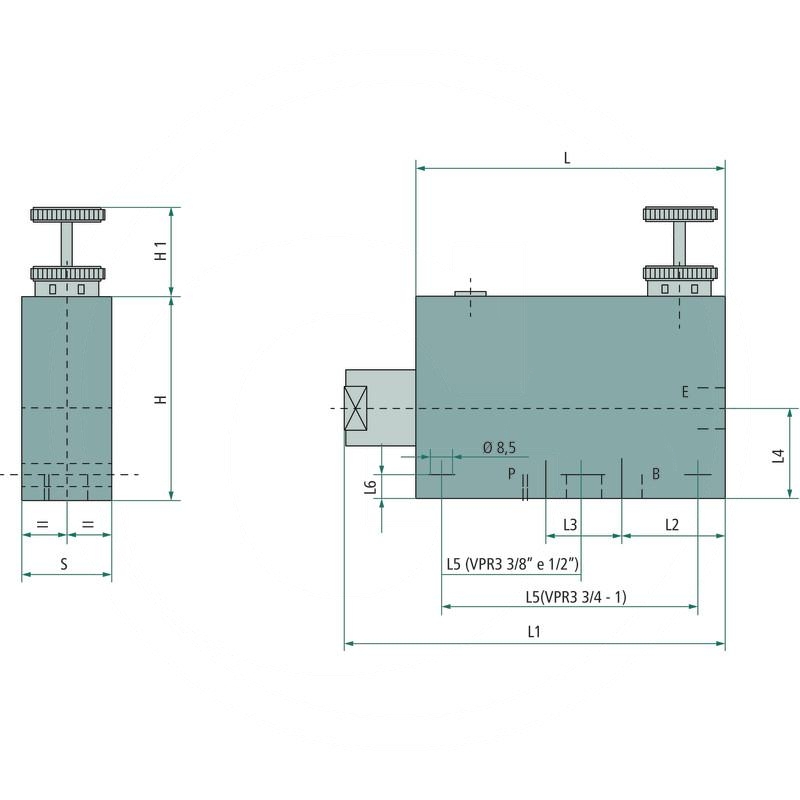

- L (mm): 121
- L1 (mm): 147
- L2 (mm): 37
- L3 (mm): 36
- L4 (mm): 36
- L5 (mm): 55
- L6 (mm): 12
- H (mm): 80
- H1 (mm): 35
- S (mm): 35
- Weight: 2.46 kg
