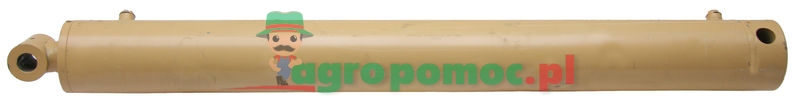

Cylinder DA B-35-60-200-400
Product code: 8203562Product reference: XE666800080HM83
Price:
188,58 € Inc. VAT
Availability:
in a warehouse
Description
Availability

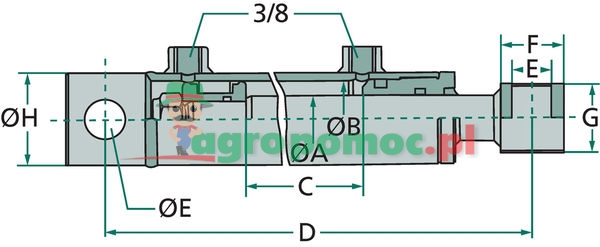

- Piston rod Ø A (mm): 35
- Cylinder Ø inner B (mm): 60
- Stroke C (mm): 200
- Tensile force (t): 3
- Compressive force (t): 5
- D (mm): 400
- E (mm): 25.25
- F (mm): 40
- G (mm): 45
- H (mm): 70
- I (mm): 25
- J (mm): 49
- K (mm): 60
- L (mm): 49
- Weight: 8.01 kg
