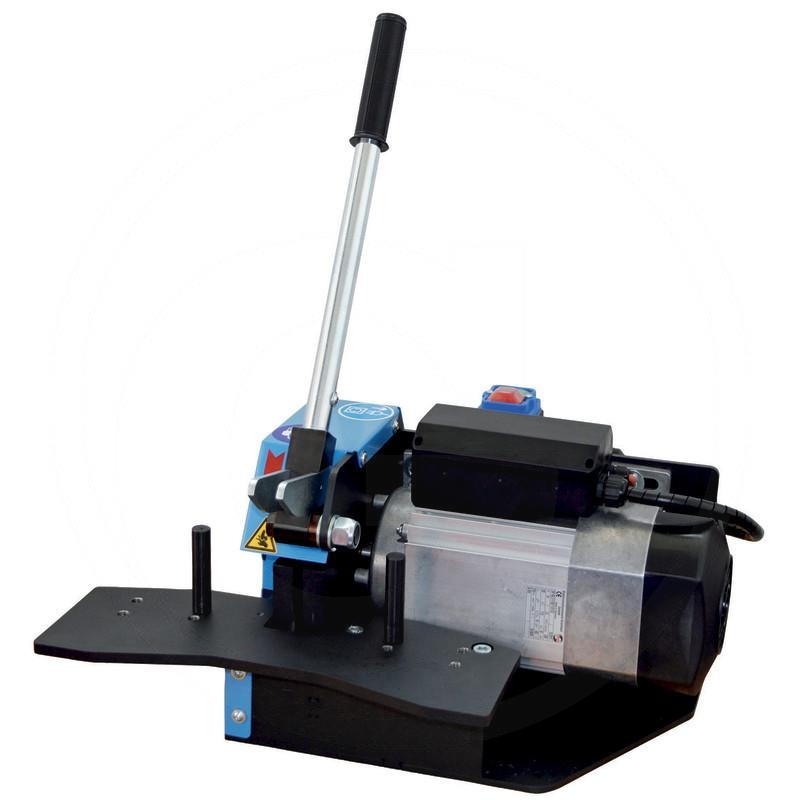

Hose cutting machine SM 210-SL Smart line
Product code: 81504310
Price:
3 061,48 € Inc. VAT
Availability:
in a warehouse
Description
Version:with knife included
Additional information:• The SM 210-SL hose cutting machine is a table-top machine that is easy and safe to use
• a strong and robust motor drives the cutting knife and allows the cutting of hydraulic hoses up to DN 40 (4 SP - DN 25)
• The motor complies with current accident prevention regulations and is equipped with a brake and automatic restart protection as well as overheating protection
• The cutting knife is secured on both sides by a knife guard
• When cutting, the hand lever is pressed forcefully from top to bottom
• The cutting table with multi-adjustable stop bolts ensures optimal bending of the hose during the cutting process
• Trennmesser : 210 x 2,5 x 30 HSS
• Working range: 2 TE/3 TE up to DN 40 1 SN/2 SN up to DN 40 4 SP/4 SH up to DN 25
• Electric motor: 230 V 50 Hz 1 Ph 2.0 kW S6-40% 2720 1/min with motor brake + thermal protection protection class IP 54
• Dimensions: 330 x 540 x 400 (H/W/D mm) Height with hand lever: 640 mm
• Weight: approx. 37 kg
• a strong and robust motor drives the cutting knife and allows the cutting of hydraulic hoses up to DN 40 (4 SP - DN 25)
• The motor complies with current accident prevention regulations and is equipped with a brake and automatic restart protection as well as overheating protection
• The cutting knife is secured on both sides by a knife guard
• When cutting, the hand lever is pressed forcefully from top to bottom
• The cutting table with multi-adjustable stop bolts ensures optimal bending of the hose during the cutting process
• Trennmesser : 210 x 2,5 x 30 HSS
• Working range: 2 TE/3 TE up to DN 40 1 SN/2 SN up to DN 40 4 SP/4 SH up to DN 25
• Electric motor: 230 V 50 Hz 1 Ph 2.0 kW S6-40% 2720 1/min with motor brake + thermal protection protection class IP 54
• Dimensions: 330 x 540 x 400 (H/W/D mm) Height with hand lever: 640 mm
• Weight: approx. 37 kg
Category to find:Power hydraulics & pneumatics Workshop equipment GRANIT cutters SM 210-SL Smart line SM 210-SL Smart line cutter
Special advantages:
The SM 210-SL hose cutter is an easy and safe to use table-top machine for a service workshop. A powerful and durable engine drives the cutting knife and enables cutting hydraulic hoses up to DN 40 (4 SP - DN 25).
The motor complies with applicable accident prevention regulations and is equipped with a brake, automatic restart protection and overheating protection.
The cutting knife is protected on both sides with a cover. When cutting, the hand lever is pressed from top to bottom with a slight force.
Cutting table with multiple adjustable stop screws ensures optimal hose bending during the cutting process.
Technical data:
• cutting knife: 210 x 2.5 x 30 mm
• HSS working range: 2 TE/3 TE up to DN 40 1 SN/2 SN up to DN 40 4 SP/4 SH up to DN 25
• electric motor: 230 V 50 Hz 1 phase 2.0 kW S6-40% 2720 1/min with motor brake + thermal protection, protection class IP 54
• dimensions: 330 x 540 x 400 (height/width/depth mm) • height with hand lever: 640 mm
• weight: approx. 37 kg
• accessories: 81504328 (685 x 420 x 380 mm)
The SM 210-SL hose cutter is an easy and safe to use table-top machine for a service workshop. A powerful and durable engine drives the cutting knife and enables cutting hydraulic hoses up to DN 40 (4 SP - DN 25).
The motor complies with applicable accident prevention regulations and is equipped with a brake, automatic restart protection and overheating protection.
The cutting knife is protected on both sides with a cover. When cutting, the hand lever is pressed from top to bottom with a slight force.
Cutting table with multiple adjustable stop screws ensures optimal hose bending during the cutting process.
Technical data:
• cutting knife: 210 x 2.5 x 30 mm
• HSS working range: 2 TE/3 TE up to DN 40 1 SN/2 SN up to DN 40 4 SP/4 SH up to DN 25
• electric motor: 230 V 50 Hz 1 phase 2.0 kW S6-40% 2720 1/min with motor brake + thermal protection, protection class IP 54
• dimensions: 330 x 540 x 400 (height/width/depth mm) • height with hand lever: 640 mm
• weight: approx. 37 kg
• accessories: 81504328 (685 x 420 x 380 mm)
